Login to PAN01 as Admin
We sed IP 85.246.42.98 as an Example.

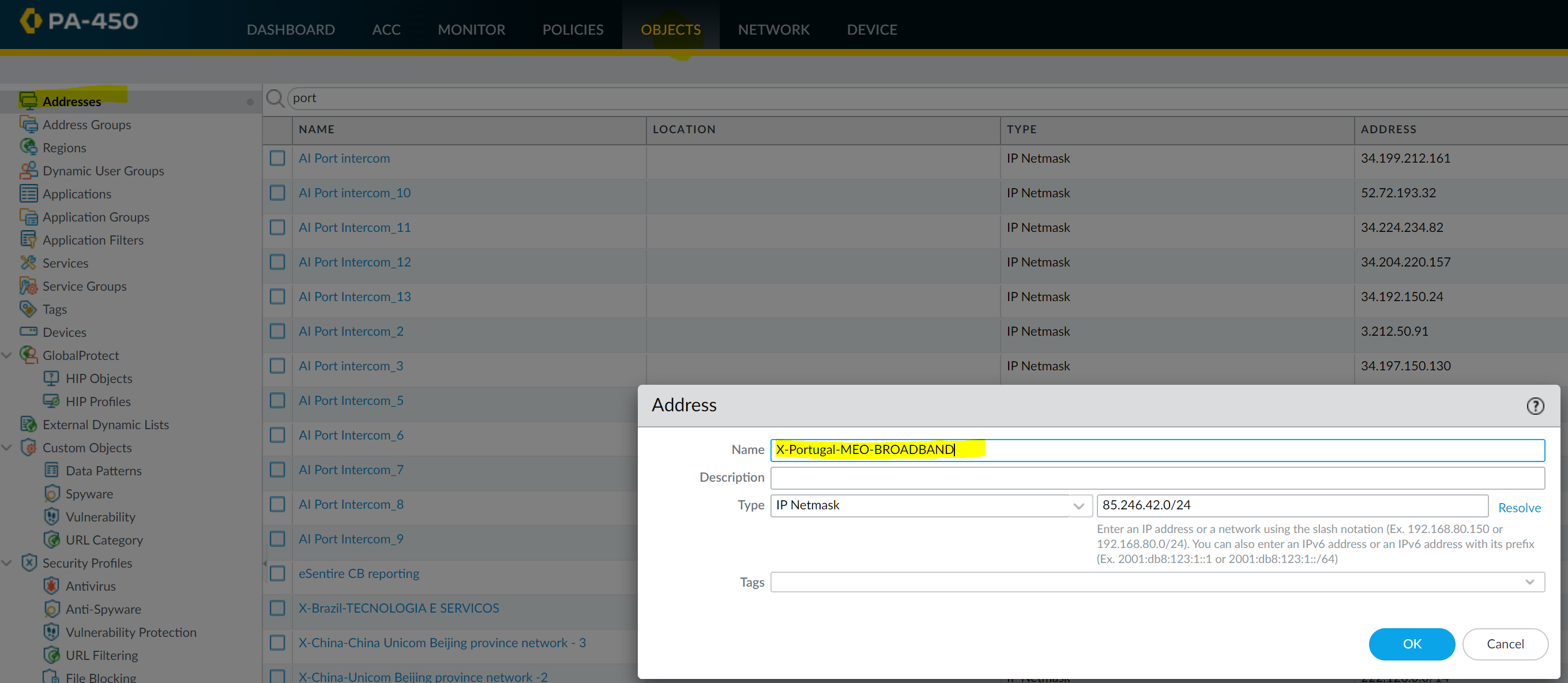

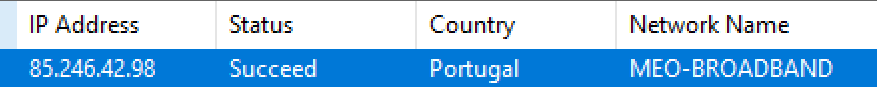

Objects >> Addresses >> Add >> Enter Name X-Portugal-MEO-BROADBAND (X-Countryname-NetworkName – use IPnetinfo to get this info>> Select IP Mask and enter here. 85.246.42.0/24
Up until here, it created an Object with IP information. This will need to be added to our Policies.
Go to Policies We need to add to both Block Outbound Access to BAD-IP and Denial Of service

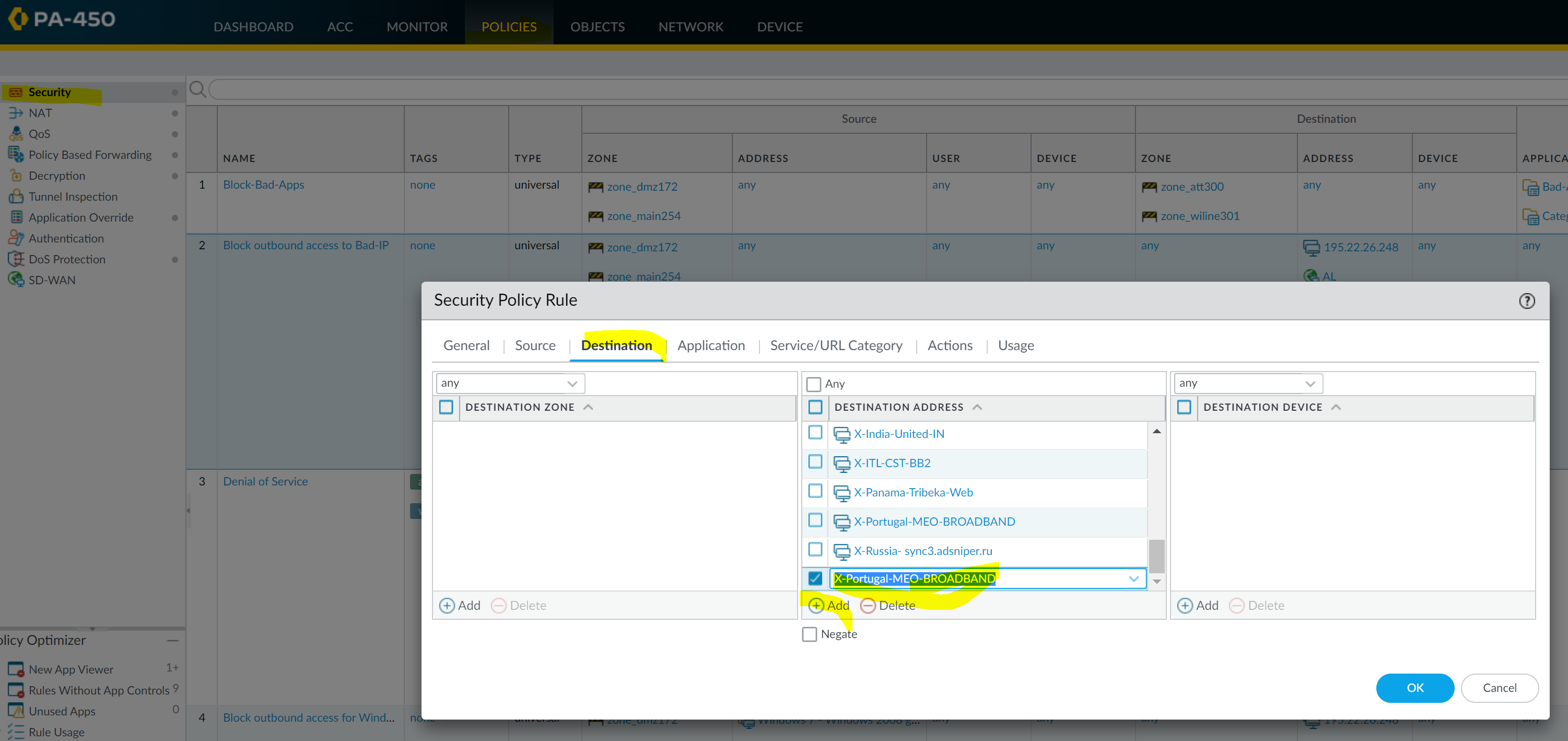

Click on Security>> Block Outbound Access to BAD-IP >> Destination >> Add >> Type name of the newly created object to Select from dropdown and click OK

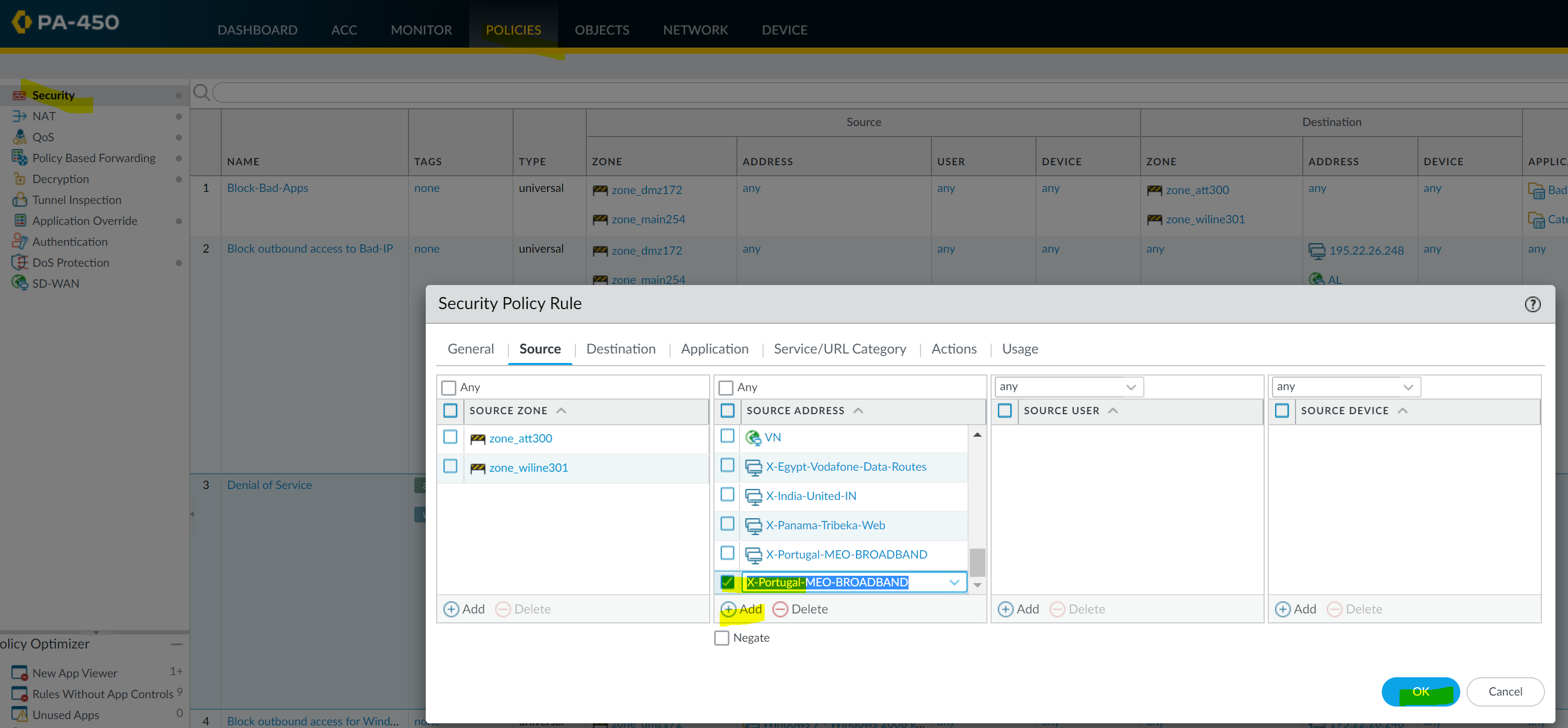

Still under Security click on Denial Of service >> Source >> Add >> Type name of the newly created object to Select from dropdown and click OK
COMMIT
Thanks,
Audel
